"Spunky" Tube Amplifier

Launched Nov. 14, 2001.

Intro

Features

Build Shaza Jane's "Spunky"
Small but phat guitar amplifier

This site best viewed at 800x600 resolution or better
(1024x768 preferred)

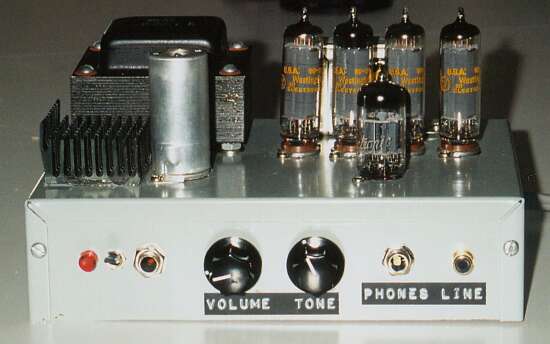

"Spunky" is a simple yet capable guitar amplifier suitable for small rooms, or mic'd into a PA system. While similar to the "Li'l 4x4" in many ways, it has a fuller, gutsier sound as compared to the squeaky-clean timbre of the Li'l 4x4.

Some experience with vacuum valves is recommended, but the project is fairly straightforward and should pose no problems for intermediate valve experimenters.

Demo recording available soon

Features:

Up to 8 watts output (depending on power supply)
High gain capability (A_v=250)
5-stage design
Uses inexpensive tubes and other components
Line-operated series-connected heaters
No global feedback for that authentic valve sound
"Big Muff" single-pot tone control
Simple but very effective compressor circuit included
Headphone output for those shy practise sessions
Optional Line level (A_v=10) input/output
